The Lightweight design makes
the Cupla best suited to power tools!

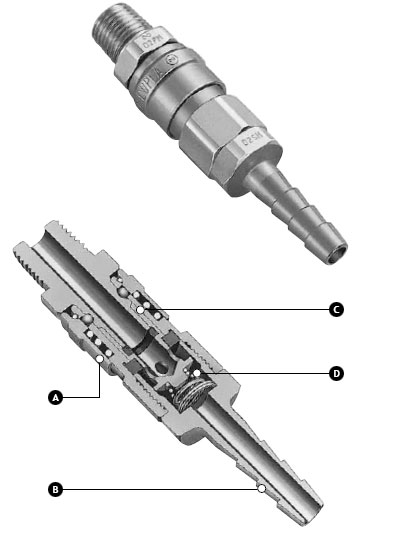

Push-to-connect for easy operation

  • A : Compact 19.5mm OD Sleeve
  • B : Wide Variety of end configurations
  • C : Can be connected to Moid Cupla Models K01SP, K02SP and K03SP
  • D : Push-to-connect design with automatic shut-off valve

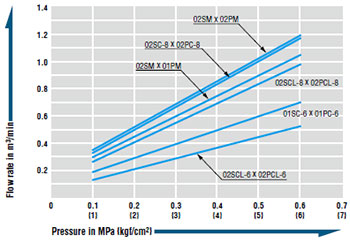

 Pressure - Flow Characteristics
  • Fluid : Air
  • Temperature : Room Temperature
  • Tube Size : 6mm x 4mm, 8mm x 6mm (Super Cupla with Tube Fitter)
